HSNC-500
Hualong Machinery

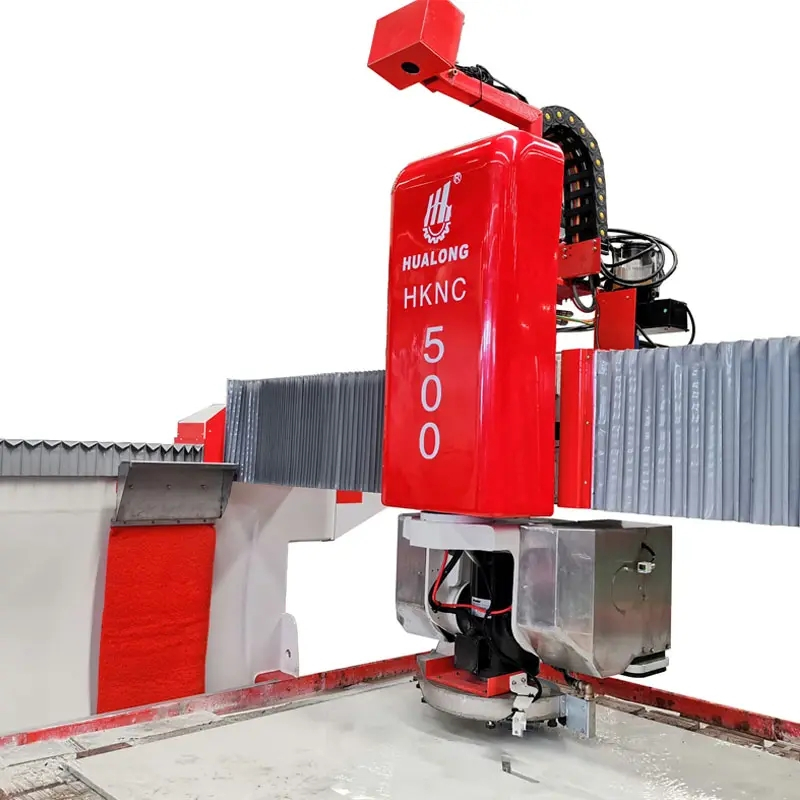

The introduction of the HSNC-500 Profiling Device for Stone, manufactured by Hualong Machinery. This cutting-edge machine is intended to revolutionize the stone manufacturing industry. With its superior features and cutting-edge technology, it ensures both precision and efficiency in every cut. With the Esa operating system from Italy, this CNC system has a user-friendly touch screen that allows for easy installation and automatic processing. Additionally, the mechanical buttons facilitate the manual activation of the primary functions, this ensures ease and versatility. The digital servomotor, created by ESA in Italy, offers powerful control over the X, Y, and Z axes. Its permanent magnet design that lacks a brush guarantees the smooth integration of Esa's CNCs, which results in accurate and smooth movement. To assist with the placement of the cuts, our machine possesses a laser-based reticule system that is derived from China. This laser-based instrument that checks for accuracy and precision throughout the process is called a caliper. The electro-spindles, which are controlled by an inverter, have a range of adjustment that is from 0 to 6000 RPM. This versatility is beneficial because it allows the use of various instruments, such as blades and diamond tools, including core drivers and milling cutters. The manual tool rotation feature provides a simple and efficient method of use. For superior accuracy and long life, our machine features Hiwin linear followers from Taiwan, China. These celebrated products are associated with superior quality and are employed on the crossbeam and carling, which results in a precise cut and a long lifespan. The HSNC-500 Profiling Device for Stone is the most effective device for-shaped stone. With its superior attributes, consistent performance, and exceptional quality, it is ideal for professionals in the stone machinery industry. Experience the future of stone harvesting with Hualong Machinery.
TECHNICAL DATA FOR HKNC-500 | ||
Diameter of saw blade | ø400-ø500 | mm |
Dimension of working platform | 3300x2000 | mm |
Max. cutting length | 3300 | mm |
Max. cutting thickness | 140 | mm |
Max. lifting stroke | 250 | mm |
Max. lifting weight by sunction cups | 200 | kg |
Power of main motor | 11 | kw |
Power of cutter frame reciproctating motor | 2 | kw |
Power of crossbeam shifting motor | 1.1 | kw |
Power of hydraulic station motor | 2.2 | kw |
Power of lifting motor | 0.85 | kw |
Gross power | 16 | kw |
Water consumption | 2 | m3/h |
Gross weight | 5400 | kg |
Dimensions (L x W x H) | 5700x3260x2765 | mm |
Main Specifications of the Profiling Device for Stone:
1. Controlled by the SiemensPLC system for ease, accuracy, and consistency.
2. One-touch automatic vertical and horizontal slicing that provides additional ease.
3. The cutting head can rotate between 0° and 360°, additionally, the blade can tilt between 0° and 90° and perform automatic chamfering.
4. With the ability to drill and mill, the process of making round sinks is more simple and quicker.
5. The working platform can rotate between 0 and 360 degrees, this allows for any position, as well as a tilt of 85 degrees for easy consumption.
6. The design of the mono-block machine is beneficial to the process of loading containers and installing the machine.
1. Precision Control: The HSNC-500 is a machine that profiling stone using Hualong Machinery. It is controlled by the Siemens PLC system, which ensures effective, accurate, and consistent operation. This facilitates precise stone cutting that satisfies the demands of the stone-shaped industry.
2. Effective Operation: With a single button that automatically cuts vertical and horizontal lines, the HSNC-500 reduces the process of cutting to a minimum of effort. This attribute saves time and effort, which leads to increased productivity in the stone-shaping profession.
3. versatile options for cuting: The HSNC-500 has a cutting head that can rotate 0°-360° and will automatically position itself. Additionally, the blade can rotate 0-90 degrees for chamfering. These versatile options for cutting stone types include flexibility in creating different types of stones, including granite and marble.
4. Additional Functions: Also equipped with drilling and milling abilities, the HSNC-500 increases productivity by making the processing of round sinks more rapid and simple. This attribute increases the machine's versatility and allows a variety of different stone shape applications to be performed.
5. Flexible Work Platform: The platform's working area can rotate 0-360 degrees and tilt to a maximum of 85 degrees, this allows for a easy feed from various angles. This versatility in the position of the stone allows for the greatest degree of cutting and shapeing, which in turn increases the overall efficiency of the machine.
6. Compact Design: Similar to a mono-block machine, the HSNC-500 is simple to install into containers and can be loaded into them. This compact design promotes efficiency and cost-savings, it's ideal for both large scale stone escultura projects and smaller crafts.
Overall, the HSNC-500 profiling machine for stone created by Hualong Machinery has a precise mechanism, efficient operation, multiple cutting options, additional functions, a platform that is flexible, and a compact design. These benefits make it a popular choice for people who want to shape stone for use in stone machinery.
1. Stone Tops: The HSNC-500 machine is specialized in processing stone tops, including those that have sinks. Its precise cutting and diverse angle options guarantee that stone countertops are produced with exceptional quality.
2. Stone Slab Profiling: This machine can be utilized to profile various types of stone slabs, including granite, marble, quartzite, and artificial stone slabs, in order to have the desired sizes.
3. Relief Tracking: The HSNC-500's attributes include relief tracking, which enables intricate patterns and designs to be created on stone surfaces. This attribute allows for the creation of breathtaking and peculiar stone art.
4. Drilling and Milling: With its ability to drill and mow, the HSNC-500 can do tasks like creating holes and detailed writing on stone surfaces. This versatility is beneficial to various stone shape and customization requirements.
5. Volatile Roulette: The HSNC-500 profiling machine has the ability to rotate the platform's position at any angle (0-360°), this enables it to adapt to different requests for cutting and processing. This flexibility allows for precise and efficient stone composition.
6. High-Precision Cutting: The HSNC-500 employs superior guides that are linear in nature and advanced control systems, this enables it to excel in high-precision cutting endeavors. This guarantees the accuracy of the cuts, which leads to superior stone shape results.
By utilizing the HSNC-500 profiling machine manufactured by Hualong Machinery, stone professionals can have a successful experience processing stone countertops, slicing stone slabs, relief processing, drilling and milling, and high-precision cutting. This machine's versatility, specificity, and advanced attributes make it a great choice for stone-shaped applications.
